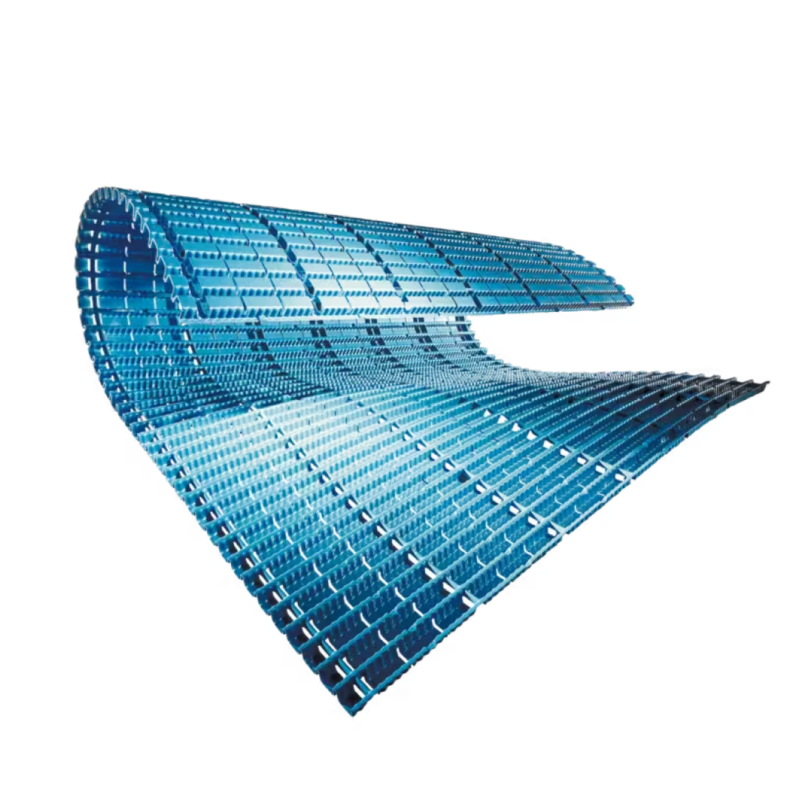

AquaDrain HB roll, 15 m²
- Heavy-duty floor drainage for surfaces subject to vehicle traffic.
- Helps prevent frost damage, efflorescence and water vapour pressure.
- Up to 30 times the drainage capacity of gravel and crushed stone alone.
Need personalised advice?
Contact usDispatched tomorrow
- In-stock items dispatched tomorrow!
- Orders of €1,250 or more qualify for free delivery.
- Pay your way with iDeal or Bancontact
Product information
AquaDrain HB is a heavy-duty floor drainage system for surfaces subject to vehicle traffic. The system was developed for driveways laid with paving bricks or cast concrete slabs and provides reliable, durable drainage of the structure. Combined with drainage bedding mortar, it creates a robust drainage system that removes water effectively and helps prevent damage within the build-up.
According to Gutjahr, AquaDrain HB helps prevent frost damage and efflorescence in paved surfaces thanks to its high drainage capacity. The system also protects against water vapour pressure by effectively ventilating the structure. This makes it suitable for applications requiring a heavy-duty, well-drained build-up.
AquaDrain HB is intended for heavily loaded outdoor surfaces and is designed to receive drainage bedding mortar or concrete where a surface subject to vehicle traffic is required. Gutjahr states that its drainage capacity is up to 30 times greater than that of gravel and crushed stone alone.
Application instructions
- Use as floor drainage for surfaces subject to vehicle traffic.
- Suitable for driveways laid with paving bricks or cast concrete slabs.
- Designed to receive drainage bedding mortar or concrete in heavy-duty build-ups.
- Protects against water vapour pressure by effectively ventilating the structure.
- Higher loading in accordance with ZTV Wegebau up to use category N3 and RStO 12 up to load class Bk0,3.
- 6-year warranty for the specialist trade according to Gutjahr.
Step-by-step guide
- Provide a suitable, correctly constructed substrate.
- Apply the waterproofing in accordance with the specified system build-up.
- Where required, install a separation layer in accordance with the specified build-up.
- Lay AquaDrain HB in the correct position within the structure.
- Continue the system build-up using concrete or drainage bedding mortar, depending on the application.
- Then install the final floor or finishing layer.
- Finish the edges and drainage using the corresponding system components.
